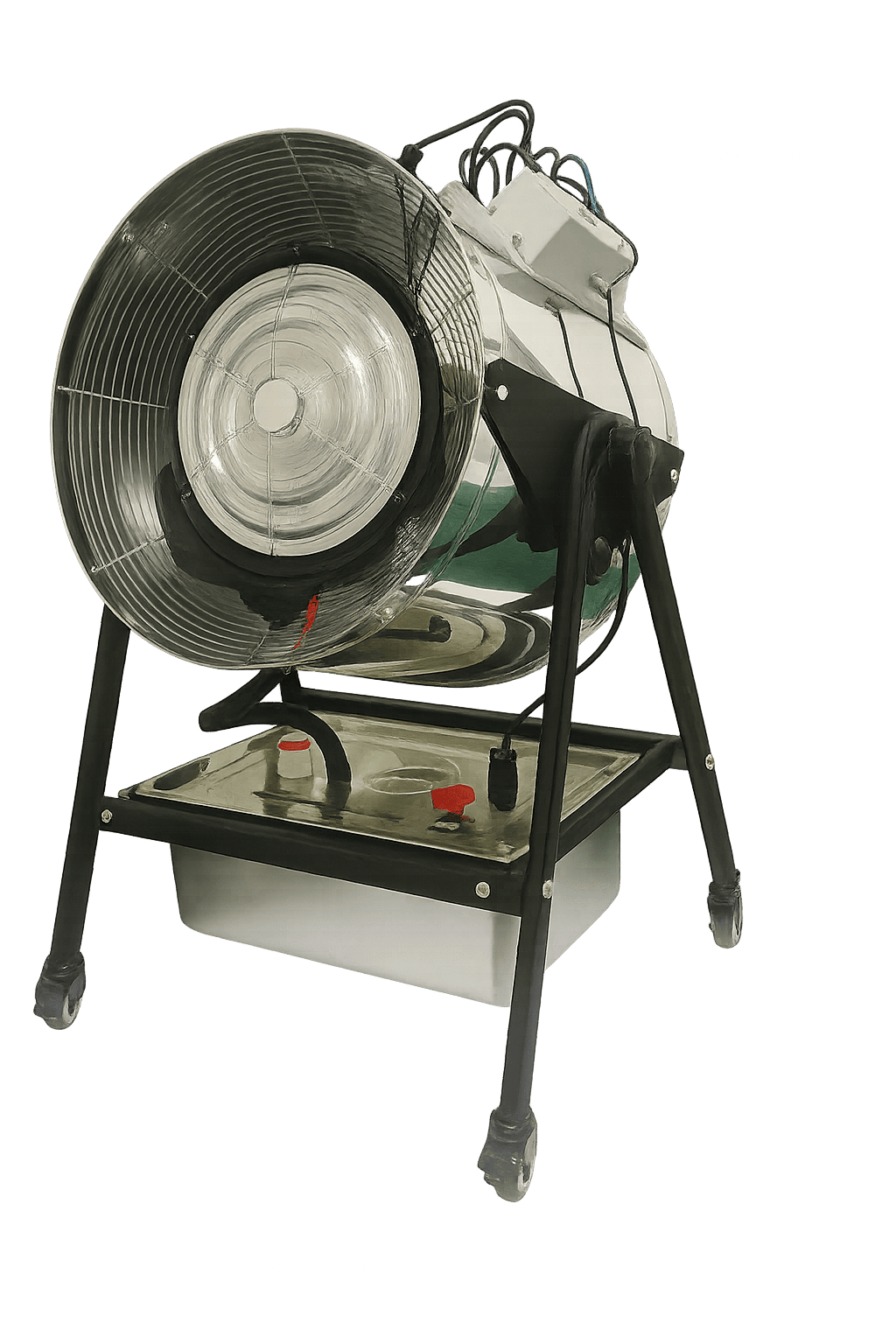

MGJ-H560RS Mobile-Station Spray Fan — Precision Cooling, Energy-Smart Fixed-Point Control

Overview

The MGJ-H560RS mobile-station spray fan is engineered for fixed-point precision cooling and humidification using centrifugal atomization technology. It rapidly disperses ultra-fine water mist into the air, lowering ambient temperature by approximately 4–8 °C, raising humidity, and significantly improving air quality. Compact design, moderate power draw, and safety features make it ideal for fixed zones in greenhouses, warehouse corners, livestock sheds, or manufacturing workstations.

Technical Efficiency & Scientific Foundations

• Centrifugal Atomization & Cooling Efficiency — Atomization with rotating disc technology creates mist droplets that evaporate quickly, absorbing latent heat from the air. In greenhouse and mist-cooling system research, evaporative cooling methods using fine mist are shown to reduce temperatures by 20–30°F (~11–17 °C) in optimal conditions, and in many practical scenarios by about 4–8 °C as ambient conditions moderate. SunshineGreenhouse

• Energy-Efficient Airflow via Centrifugal Fans — Centrifugal fans maintain airflow stability under resistance and allow high static pressure performance, providing better efficiency than many axial alternatives when used with atomization or humidification systems. coolingfanmanufacturers.com+1

• Avoiding Plant Stress & Maximizing Yield — Consistent micro-climate control via localized humidification helps prevent heat stress on plants (wilting, reduced photosynthesis), improves leaf hydration, and avoids rapid moisture loss—benefits documented in horticultural studies. Señor Mist+1

Key Features & Advantages

Technical Specifications

• Input Power: 340 W

• Output Power: 225 W

• Current Draw: 1.5 A

• Fan Speed: 930 RPM

• Air Flow: 8,500 m³/h

• Voltage: 220 V / 50 Hz

• Atomization Rate: 0–20 L/h (adjustable)

• Water Tank Capacity: 27 L

• Effective Coverage Area: Up to 150 m²

• Physical Size: 650 × 550 × 850 mm

• Unit Weight: ~23 kg

Ideal Use Cases

• Fixed cooling and dehumidification points in greenhouses (e.g. near roof areas, windows)

• Livestock or poultry sheds with localized high heat stress zones

• Warehousing corners or loading docks with heat accumulation

• Industrial workstations with heat sources or where precise humidity is needed for material handling

• Seedling or propagation areas where uniform humidity & temperature are critical

SEO-Friendly Keywords & Phrases to Include in Your Page

• fixed-point spray fan

• centrifugal atomization cooling fan

• precision cooling & humidification

• energy-efficient mist fan

• greenhouse fixed spray cooling

• industrial mist cooling systems

• compact fixed-station fan

Why Choose MGJ-H560RS?

If you are looking for a reliable, energy-smart fan solution that can maintain local environmental control in hot spots, reduce energy and water costs, and protect crops, livestock, or inventory—MGJ-H560RS offers an outstanding balance of performance and cost.

MGJ-H560RS 移动固定式喷雾风扇 — 定点精准降温 · 高效节能 · 空气改善专家

产品概述

MGJ-H560RS 移动固定式喷雾风扇 采用先进的离心式雾化技术，能够迅速将超细水雾均匀扩散到空气中，通过蒸发吸热，使环境温度降低 约 4–8℃，同时显著提升空气湿度，改善空气质量。该机型结构紧凑、能耗低、具备安全保护功能，非常适合在温室大棚、仓储角落、畜牧养殖区及工业工位等局部区域进行精准环境控制。

技术机理与科学依据

• 离心雾化降温机理
  高速旋转的雾化盘将水打散成微米级雾滴，快速蒸发并吸收空气中的热量，从而达到降温效果。温室与加湿系统研究显示，在适宜环境下，细雾蒸发可降低空气温度 约 4–8℃，有效缓解热应激。

• 离心风机气流优势
  离心风机在稳定性和静压性能上优于普通轴流风机，确保空气在高湿环境下仍能高效循环，适合喷雾与加湿应用。

• 作物与畜禽的健康收益
  精准湿度与温度控制可有效减少植物萎蔫、光合作用下降等热害问题，同时改善畜禽环境，降低应激，提高存活率与生产效率。

核心优势

技术参数

• 输入功率：340 W

• 输出功率：225 W

• 电流：1.5 A

• 转速：930 RPM

• 风量：8,500 m³/h

• 电压：220 V / 50 Hz

• 雾化量：0–20 L/h（可调）

• 水箱容量：27 L

• 覆盖面积：≤150 m²

• 产品尺寸：650 × 550 × 850 mm

• 重量：23 kg

适用场景

• 温室大棚、育苗中心定点降温与加湿

• 畜牧养殖区局部高温湿度调控

• 工业车间与仓储物流角落环境改善

• 加工与存储空间的本地化精准环境控制

为什么选择 MGJ-H560RS？

如果您正在寻找一款 可靠、省能且精准的环境控制设备，既能节约用电与用水，又能保障作物、畜禽或物料的品质与产量，MGJ-H560RS 将是您的最佳选择。

联系我们

立即与我们取得联系，获取更多技术资料、工艺布局方案或投资回报分析：
